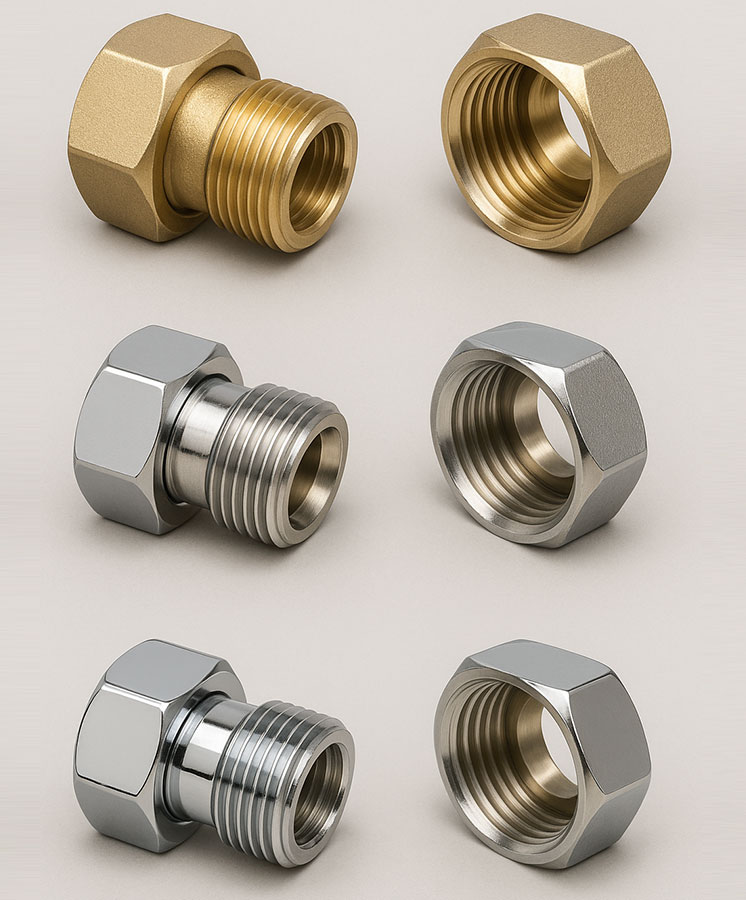

Brass Meter Couplings
Brass Meter Couplings are specially designed fittings used to connect water, gas, or utility meters to pipework in a safe, leak-proof, and easily serviceable manner. These couplings are made from high-quality brass for excellent corrosion resistance, long-term mechanical strength, and compatibility with a wide range of fluids.
| Parameter | Details |
|---|---|
| Material | Brass IS 319 / CW617N / CZ121 / BS 2874 |
| Size Range | 1/2”, 3/4”, 1”, 1¼”, 1½”, 2” or custom (15 mm to 50 mm) |
| Thread Standards | BSP, BSPT, NPT, ISO Metric |
| Connection Type | Male × Female, Union Type, Flanged Ends |
| Sealing Method | Rubber washer, fiber washer, or integrated O-ring |
| Pressure Rating | Up to 20 bar (water) or 10 bar (gas) |
| Temperature Range | -10°C to +120°C |
| Finish Options | Natural Brass, Nickel Plated, Chrome Plated |
| Compliance | IS 319, EN 1254, WRAS, ROHS, ISO 9001 |
