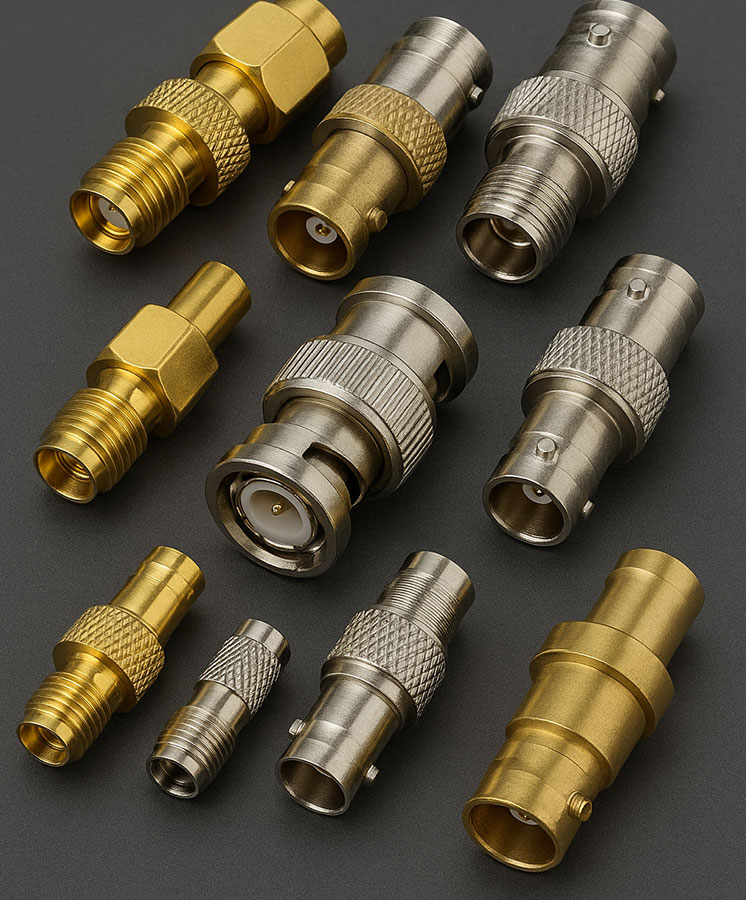

Brass RF Connectors
Brass RF (Radio Frequency) Connectors are precision-machined components designed for the transmission of high-frequency signals in critical communication and electronic systems. Manufactured with exact tolerances and plated for conductivity and corrosion resistance, these connectors are widely used in telecom, aerospace, broadcast, RF instrumentation, and defense applications.
| Parameter | Details |
|---|---|
| Material | Brass IS 319 / CW614N / CZ121 (lead-free/ROHS available) |
| Connector Types | SMA, SMB, SMC, BNC, TNC, F-Type, N-Type, MCX, MMCX, UHF, Mini UHF |
| Cable Compatibility | RG58, RG59, RG174, RG213, RG6, RG316, LMR cables |
| Frequency Range | Up to 6 GHz (varies by type) |
| Impedance | 50 Ohms / 75 Ohms |
| Finish Options | Nickel Plated, Gold Plated, Silver Plated |
| Mounting Options | Panel Mount, Bulkhead, PCB Mount, Crimp-on, Solder Type |
| Tolerance | ±0.01 mm for mating and contact dimensions |
| Compliance | MIL-C-39012, IEC, ROHS, REACH, ISO 9001 |
