BW–2 Part Industrial Cable Gland
| SPECIFICATIONS | |
|---|---|
| Size Range | 20mm to 90mm S & L |
| IP Rating | IP30 |
| Standard | BS 6121 |
| Operating Temperature | -60°C to +200°C |
| Thread Type | Metric |
| Cable Type | Single Wire Armour (SWA) cable |
| Feature | Two Part Armour Lock |
| Function | Provides Mechanical Cable Retention & Electrical Wire Continuity via Armoured Wire |
| APPLICATIONS | |
| Use | Suitable for Dry Indoor environments |
| Cable Compatibility | Designed for use with all types of SWA (Steel Wire Armoured) cables |
| ACCESSORIES | |
| Included Accessories | PVC Shrouds, Earth Tag, Galvanized Steel Lock Nut |
| MATERIALS | |
| Gland Material | Brass CW614N |
| Finish | Natural / Nickel Plated |
BW–2 Part Industrial Cable Gland – Technical Specification

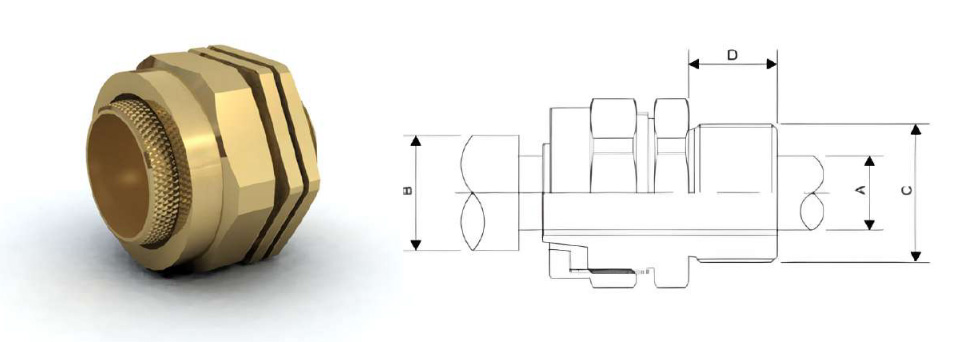

| Code No | Gland Size | Thread Size | Min. Length of Thread “D” | Gland Range Max A” | Gland Range Max B” | |
|---|---|---|---|---|---|---|
| Metric | NPT | |||||
| KMI-B2-20S | BW 20S | M20 | ½" | 10 | 11.50 | 15.50 |
| KMI-B2-20 | BW 20 | M20 | ½" | 10 | 14.00 | 20.50 |
| KMI-B2-25 | BW 25 | M25 | ¾" | 10 | 20.00 | 27.20 |
| KMI-B2-32 | BW 32 | M32 | 1" | 10 | 26.30 | 33.50 |
| KMI-B2-40 | BW 40 | M40 | 1 ¼" | 15 | 32.00 | 40.00 |
| KMI-B2-50S | BW 50S | M50 | 1 ½" | 15 | 38.20 | 46.30 |
| KMI-B2-50 | BW 50 | M50 | 2" | 15 | 44.00 | 52.60 |
| KMI-B2-63S | BW 63S | M63 | 2" | 15 | 50.10 | 59.00 |
| KMI-B2-63 | BW 63 | M63 | 2 ½" | 15 | 56.00 | 65.30 |
| KMI-B2-75S | BW 75S | M75 | 2 ½" | 15 | 62.00 | 71.60 |
| KMI-B2-75 | BW 75 | M75 | 3" | 15 | 68.00 | 78.00 |
| KMI-B2-90 | BW 90 | M75 | 3" | 20 | 80.50 | 91.00 |
