BW–4 Part Industrial Cable Gland
| SPECIFICATIONS | |
|---|---|
| Size Range | 20mm to 90mm (S & L) |
| IP Rating | IP30 |
| Operating Temperature | -60°C to +200°C |
| Standard | BS 6121 |
| Thread Type | Metric |
| Cable Type | Single Wire Armour (SWA) |
| Feature | Two Part Armour Lock |
| Function | Mechanical Cable Retention & Electrical Wire Continuity |
| APPLICATIONS | |
| Use | Suitable for Dry Indoor Environments |
| Cable Compatibility | All types of SWA (Steel Wire Armoured) cables |
| ACCESSORIES | |
| Included Accessories | PVC Shrouds, Earth Tag, Galvanized Steel Lock Nut |
| MATERIALS | |
| Material | Brass CW614N |
| Finish | Natural or Nickel Plated |

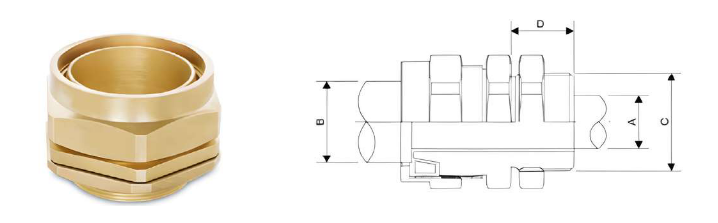

BW–4 Part Industrial Cable Gland – Technical Specification
| Code No | Gland Size | Thread Size | Min. Length of Thread “D” | Gland Range Max A” | Gland Range Max B” | |
|---|---|---|---|---|---|---|
| Metric | NPT | |||||
| KMI-B4-20 S | BW 20 S | M20 | ½" | 10 | 11.50 | 15.50 |
| KMI-B4-20 L | BW 20 L | M20 | ½" | 10 | 14.00 | 20.50 |
| KMI-B4-25 S | BW 25 S | M25 | ¾" | 10 | 18.00 | 24.00 |
| KMI-B4-25 L | BW 25 L | M25 | ¾" | 10 | 20.00 | 27.20 |
| KMI-B4-32 S | BW 32 S | M32 | 1" | 10 | 26.30 | 35.50 |
| KMI-B4-32 L | BW 32 L | M32 | 1" | 10 | 26.30 | 33.50 |
| KMI-B4-40 S | BW 40 S | M40 | 1 ¼" | 13 | 31.50 | 39.50 |
| KMI-B4-40 L | BW 40 L | M40 | 1 ¼" | 13 | 32.00 | 40.00 |
| KMI-B4-50 S | BW 50 S | M50 | 1 ½" | 13 | 38.20 | 46.30 |
| KMI-B4-50 L | BW 50 L | M50 | 2" | 13 | 44.00 | 52.60 |
| KMI-B4-63 S | BW 63 S | M63 | 2" | 14 | 50.10 | 59.00 |
| KMI-B4-63 L | BW 63 L | M63 | 2 ½" | 14 | 56.00 | 65.30 |
| KMI-B4-75 S | BW 75 S | M75 | 2 ½" | 15 | 62.00 | 71.60 |
| KMI-B4-75 L | BW 75 S | M75 | 3" | 15 | 68.00 | 78.00 |
| KMI-B4-90 S | BW 75 S | M90 | 3" | 18 | 80.50 | 91.00 |
| KMI-B4-90 L | BW 75 S | M90 | 3" | 18 | 80.50 | 91.00 |
