CW 3 PT Type Cable Gland
| SPECIFICATIONS | |
|---|---|
| Size Range | 20mm to 90mm (S & L) |
| IP Rating | IP66 |
| Standard | BS 6121 |
| Operating Temperature | Standard steel –20°C to +80°C |
| Thread | Metric, NPT, BSP & PG |
| Cable Type | Single Wire Armour (SWA) Cable |
| Feature | Three-Part Design with Effective Armour Clamping |
| Function | CW type gland seals the outer sheath and uses an armour-specific clamp to ensure electrical bonding with the armoured cable |
| APPLICATIONS | |
| Use | Suitable for Outdoor & Indoor Environments |
| Cable Compatibility | Designed for use with all types of SWA Cables |
| ACCESSORIES | |
| Included Accessories | PVC Shrouds, Earth Tags, Lock Nuts |
| MATERIALS | |
| Material | Brass BS 2874 CZ121 Pb3 |
| Finish | Natural / Nickel Plated |

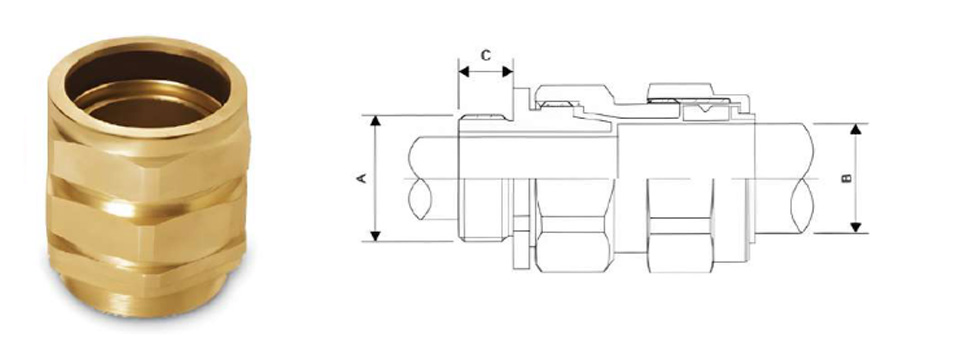

CW Type Cable Gland – Technical Specification
| Code No | Gland Size | Thread Size (Metric) | Thread Size (NPT) | Min. Thread Length (D) | Cable Range Max A" | Cable Range Max B" |
|---|---|---|---|---|---|---|
| KMI-C3-20 S | CW 20 S | M20 | ½" | 10 | 11.50 | 15.50 |
| KMI-C3-20 L | CW 20 L | M20 | ½" | 10 | 14.00 | 20.50 |
| KMI-C3-25 S | CW 25 S | M25 | ¾" | 10 | 18.00 | 24.00 |
| KMI-C3-25 L | CW 25 L | M25 | ¾" | 10 | 20.00 | 27.20 |
| KMI-C3-32 S | CW 32 S | M32 | 1" | 10 | 26.30 | 33.50 |
| KMI-C3-32 L | CW 32 L | M32 | 1" | 15 | 26.30 | 33.50 |
| KMI-C3-40 S | CW 40 S | M40 | 1 ¼" | 15 | 31.50 | 39.50 |
| KMI-C3-40 L | CW 40 L | M40 | 1 ¼" | 20 | 32.00 | 40.00 |
| KMI-C3-50 S | CW 50 S | M50 | 1 ½" | 20 | 38.20 | 46.30 |
| KMI-C3-50 L | CW 50 L | M50 | 2" | 20 | 44.00 | 52.60 |
| KMI-C3-63 S | CW 63 S | M63 | 2" | 20 | 50.10 | 59.00 |
| KMI-C3-63 L | CW 63 L | M63 | 2 ½" | 20 | 56.00 | 65.30 |
| KMI-C3-75 S | CW 75 S | M75 | 2 ½" | 20 | 62.00 | 71.60 |
| KMI-C3-75 L | CW 75 L | M75 | 3" | 20 | 68.00 | 78.00 |
| KMI-C3-90 S | CW 90 S | M90 | 3" | 20 | 80.50 | 91.00 |
| KMI-C3-90 L | CW 90 L | M90 | 3" | 20 | 80.50 | 91.00 |
