E1FW Type Cable Gland
| SPECIFICATIONS | |
|---|---|
| Size Range | 20 mm to 100 mm (S & L) |
| IP Rating | IP66 & IP67 |
| Standard | BS 6121 |
| Operating Temperature | Standard Steel –20°C to +80°C |
| Thread | Metric, NPT, BSP & PG |
| Cable Type | Single Wire Armour (SWA) Cable |
| Feature | Flameproof Dual Seal & Electrical Continuity via Armour Clamp |
| Function | E1W Type gland provides sealing on both inner and outer sheaths, with a specific armour clamp that ensures electrical continuity between the armoured cable and the gland. |
| APPLICATIONS | |
| Use | Suitable for Outdoor & Indoor Environments |
| Cable Compatibility | Designed for use with all types of SWA Cables |
| ACCESSORIES | |
| Included Accessories | PVC Shrouds, Earth Tags, Lock Nuts |
| MATERIALS | |
| Material | Brass BS 2874 CZ121 Pb3 |
| Finish | Natural / Nickel Plated |
E1FW Cable Gland – Technical Specifications

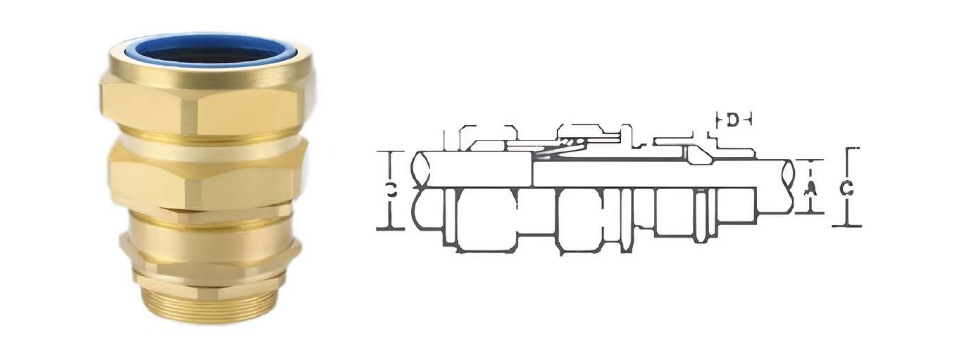

| Code No | Gland Size | Thread Size | Min Length of Thread “D” | Cable Range “A” (mm) | Cable Range “B” (mm) | |||
|---|---|---|---|---|---|---|---|---|
| Metric | NPT | Min | Max | Min | Max | |||
| KMI-E1F-20 S | E1FW 20 S | M20 | ½" | 15 | 8.80 | 11.70 | 11.80 | 15.80 |
| KMI-E1F-20 L | E1FW 20 L | M20 | ½" | 15 | 11.40 | 14.00 | 14.00 | 20.80 |
| KMI-E1F-25 S | E1FW 25 S | M25 | ¾" | 15 | 17.30 | 20.00 | 20.30 | 27.40 |
| KMI-E1F-32 L | E1FW 32 L | M32 | 1" | 15 | 24.20 | 26.30 | 26.50 | 33.50 |
| KMI-E1F-40 L | E1FW 40 L | M40 | 1 1/4" | 15 | 29.50 | 32.20 | 33.20 | 40.00 |
| KMI-E1F-50 S | E1FW 50 S | M50 | 1 1/2" | 15 | 33.00 | 38.20 | 40.00 | 46.30 |
| KMI-E1F-50 L | E1FW 50 L | M50 | 2" | 15 | 38.00 | 44.00 | 44.00 | 52.60 |
| KMI-E1F-63 S | E1FW 63 S | M63 | 2" | 15 | 44.00 | 50.10 | 50.00 | 59.00 |
| KMI-E1F-63 L | E1FW 63 L | M63 | 2 1/2" | 15 | 50.00 | 56.00 | 56.00 | 65.30 |
| KMI-E1F-75 S | E1FW 75 S | M75 | 2 1/2" | 15 | 56.00 | 62.00 | 63.50 | 71.60 |
| KMI-E1F-75 L | E1FW 75 L | M75 | 3" | 15 | 62.00 | 68.00 | 69.00 | 78.00 |
| KMI-E1F-90 | E1FW 90 | M90 | 3" | 20 | 65.00 | 80.00 | 84.00 | 96.00 |
| KMI-E1F-100 | E1FW 100 | M100 | 3 1/2" | 20 | 82.00 | 90.00 | 84.00 | 102.00 |
