E1W Type 2 Cable Gland
| SPECIFICATIONS | |
|---|---|
| Size Range | 20mm to 100mm (S & L) |
| IP Rating | IP66 & IP67 |
| Standard | BS 6121 |
| Operating Temperature | Standard steel –20°C to +80°C |
| Thread | Metric, NPT, BSP & PG |
| Cable Type | Single Wire Armour (SWA) Cable |
| Feature | Weatherproof Inner & Outer Seal with Armour Clamping |
| Function | E1W type gland seals both inner and outer sheaths and includes an armour clamp for electrical bonding with armoured cables |
| APPLICATIONS | |
| Use | Suitable for Outdoor & Indoor Environments |
| Cable Compatibility | Designed for use with all types of SWA Cables |
| ACCESSORIES | |
| Included Accessories | PVC Shrouds, Earth Tags, Lock Nuts |
| MATERIALS | |
| Material | Brass BS 2874 CZ121 Pb3 |
| Finish | Natural / Nickel Plated |
E1W Type Cable Gland – Technical Specification

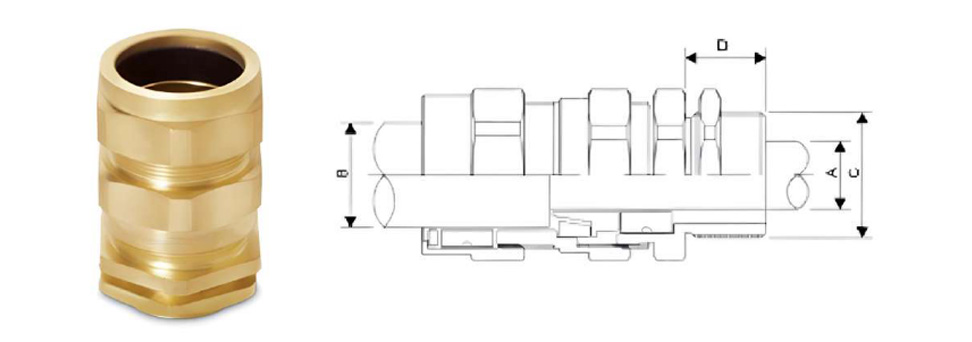

| Code No | Gland Size | Thread Size (Metric) | Thread Size (NPT) | Min Thread Length (D) | Cable Range “A” (mm) | Cable Range “B” (mm) | ||
|---|---|---|---|---|---|---|---|---|
| Min | Max | Min | Max | |||||
| KMI-E1-20 S | E1W 20 S | M20 | ½" | 15 | 8.80 | 11.70 | 11.80 | 16.00 |
| KMI-E1-20 L | E1W 20 L | M20 | ½" | 15 | 11.40 | 14.00 | 14.00 | 20.80 |
| KMI-E1-25 S | E1W 25 S | M25 | ¾" | 15 | 13.00 | 16.00 | 18.00 | 24.00 |
| KMI-E1-25 L | E1W 25 L | M25 | ¾" | 15 | 17.30 | 20.00 | 20.30 | 27.40 |
| KMI-E1-32 S | E1W 32 S | M32 | 1" | 10 | 20.00 | 23.00 | 24.50 | 31.00 |
| KMI-E1-32 L | E1W 32 L | M32 | 1" | 15 | 24.20 | 26.30 | 26.50 | 33.50 |
| KMI-E1-40 S | E1W 40 S | M40 | 1 1/4" | 15 | 26.00 | 29.00 | 30.40 | 36.00 |
| KMI-E1-40 L | E1W 40 L | M40 | 1 1/4" | 15 | 29.50 | 32.10 | 33.20 | 40.00 |
| KMI-E1-50 S | E1W 50 S | M50 | 1 1/2" | 15 | 33.00 | 38.10 | 40.00 | 46.50 |
| KMI-E1-50 L | E1W 50 L | M50 | 2" | 15 | 38.00 | 44.00 | 44.00 | 52.60 |
| KMI-E1-63 S | E1W 63 S | M63 | 2" | 20 | 44.00 | 50.50 | 50.00 | 59.00 |
| KMI-E1-63 L | E1W 63 L | M63 | 2 1/2" | 20 | 50.00 | 56.00 | 56.00 | 66.00 |
| KMI-E1-75 S | E1W 75 S | M75 | 2 1/2" | 20 | 56.00 | 62.00 | 63.50 | 71.00 |
| KMI-E1-75 L | E1W 75 L | M75 | 3" | 20 | 62.00 | 68.50 | 69.00 | 78.00 |
| KMI-E1-90 | E1W 90 | M90 | 3" | 20 | 65.00 | 80.00 | 84.00 | 96.00 |
| KMI-E1-100 | E1W 100 | M100 | 3 1/2" | 20 | 82.00 | 90.00 | 84.00 | 102.00 |
