PG Cable Gland
| SPECIFICATIONS | |
|---|---|
| Size Range | PG7 to PG63 |
| Thread Type | DIN Standard (PG Thread) |
| IP Rating | IP68 (with sealing ring) |
| Temperature Range | -20°C to +100°C (short-term up to +120°C) |
| Application Type | Indoor & Outdoor Cable Entry |
| Function | Strain relief & environmental protection |
| APPLICATIONS | |
| Use | Used in junction boxes, control panels, and field wiring |
| Industries | Electrical, Automation, Industrial Equipment |
| ACCESSORIES | |
| Included Accessories | Lock Nut, Washer, Rubber Seal |
| MATERIALS | |
| Body Material | Brass (CW614N) or Polyamide (Nylon) |
| Plating | Nickel Plated (for brass glands) |
PG Cable Gland – Technical Specification

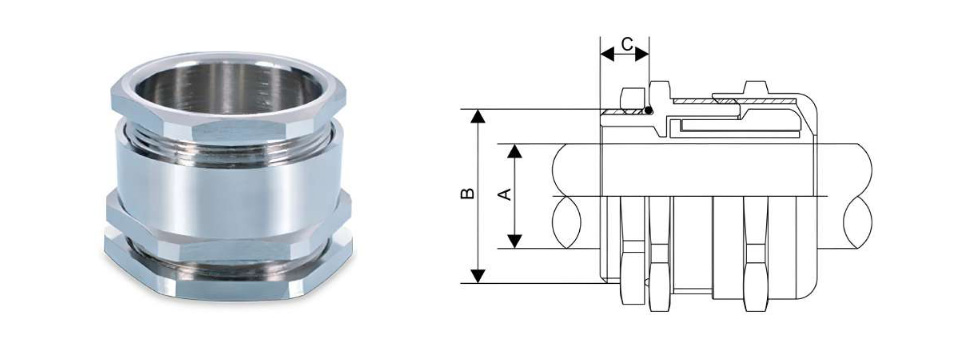

| Code No | Gland Size | Thread Size C | Thread Size ‘B’ | Across Flat | Cable Range “A” (mm) | ||
|---|---|---|---|---|---|---|---|
| Short | Long | Min | Max | ||||
| KMI-PG7-6.5 | PG 7 | 6 | 10 | PG 7 | 14.00 | 3.00 | 6.50 |
| KMI-PG9-8 | PG 9 | 6 | 10 | PG 9 | 17.00 | 4.00 | 8.00 |
| KMI-PG11-10 | PG 11 | 6 | 10 | PG 11 | 20.00 | 6.00 | 10.00 |
| KMI-PG13-12 | PG 13 | 6.5 | 10 | PG 13 | 22.00 | 8.00 | 12.00 |
| KMI-PG16-14 | PG 16 | 6.5 | 10 | PG 16 | 24.00 | 10.00 | 14.00 |
| KMI-PG21-18 | PG 21 | 7 | 12 | PG 21 | 30.00 | 13.00 | 18.00 |
| KMI-PG29-20 | PG 29 | 8 | 12 | PG 29 | 40.00 | 13.00 | 20.00 |
| KMI-PG29-25 | PG 29 | 8 | 12 | PG 29 | 40.00 | 18.00 | 25.00 |
| KMI-PG36-32 | PG 36 | 8 | 12 | PG 36 | 50.00 | 22.00 | 32.00 |
| KMI-PG42-35 | PG 42 | 9 | 15 | PG 42 | 57.00 | 27.00 | 35.00 |
| KMI-PG42-38 | PG 42 | 9 | 15 | PG 42 | 57.00 | 32.00 | 38.00 |
| KMI-PG48-35 | PG 48 | 10 | 15 | PG 48 | 68.00 | 29.00 | 35.00 |
| KMI-PG48-44 | PG 48 | 10 | 15 | PG 48 | 68.00 | 37.00 | 44.00 |
